| Body Type | TM300 WINGVAN |
|---|---|
| Engine Type | Four-cylinder, in-line, water cooling, DOC, diesel engine |
| Emission Standard | EURO IV |
| Displacement | 2.156 Liters |
| Power Output | 87Hp / 3200rpm |
| Torque | 220N.m /2000rpm |
| Overall Dimensions (LxWxH) | 4705mm x 1790mm x 2028mm |
| Wheelbase | 2400 mm |
| Minimum Ground Clearance | 160mm |
| Gross Vehicle Weight (GVW) | 2690kg |
| Rated Payload | 1130kg |
| Driving Type | 4 wheeler |
| Steering | Hydraulic Power Steering |
| Fuel Tank Capacity | 60 Liters |
| Tires/Wheels | 185R14LT |
| Suspension (Front) | Leaf spring, non-independent suspension / 3 |
| Suspension (Rear) | Leaf spring, non-independent suspension / 5+2 |
| Brake Type | Hydraulic brake, Front disc, Rear drum (ABS EQUIPED) |
| Parking Brake | Wheel brake |
| Electric Device (Rated Voltage) | 12v |
| Entertainment System | Radio + Mp3 |
| Other Features | Adjustable Head lamp, Fog Lamp, Daytime Running Light (DRL), 3 point Seat belt for Driver and Passenger, Air-conditioning System, Dual Sun visor, Power Window, Central Lock |

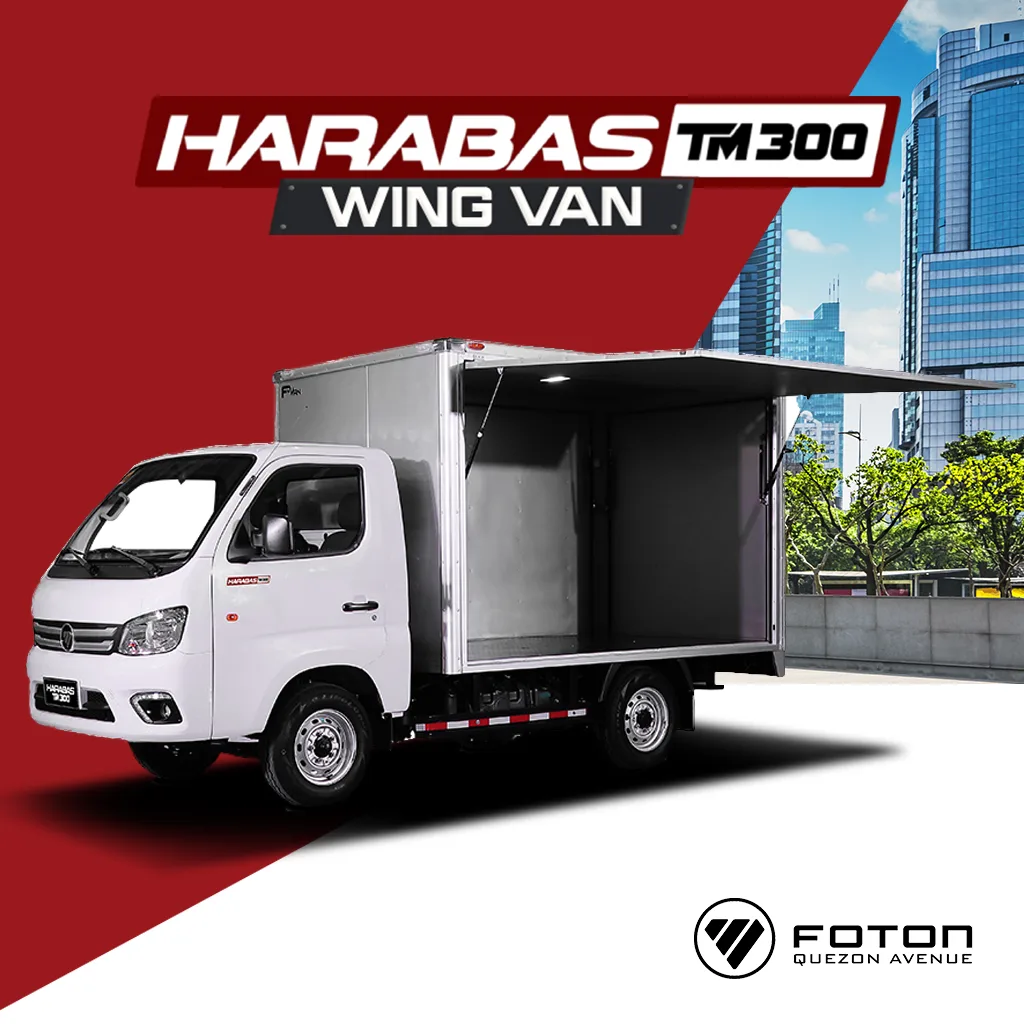

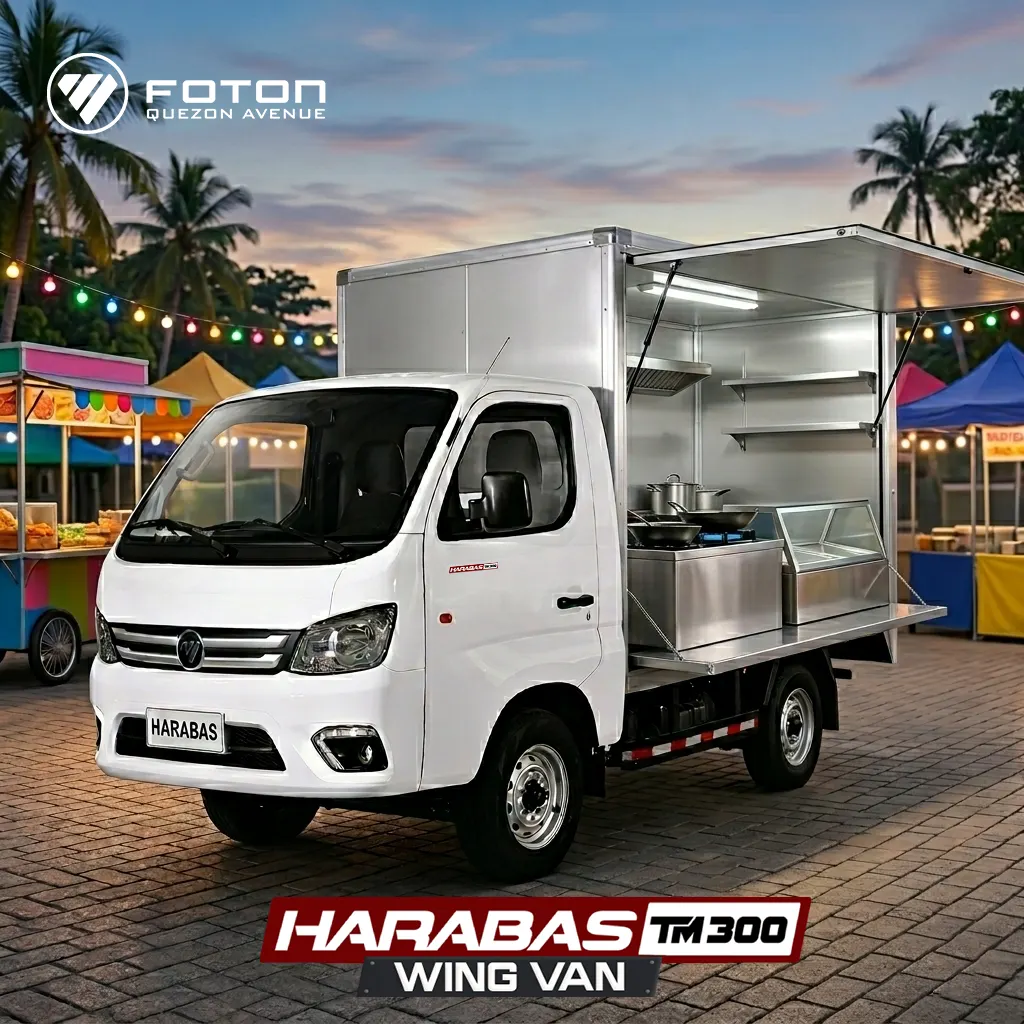

The Foton Harabas TM 300 Wing Van is a versatile, light-duty commercial vehicle designed for small businesses and logistics. Its primary purpose is to facilitate efficient cargo loading/unloading through three lift-up "wing" doors, ideal for mobile stores (kitchens, palengke), courier services, and deliveries.
